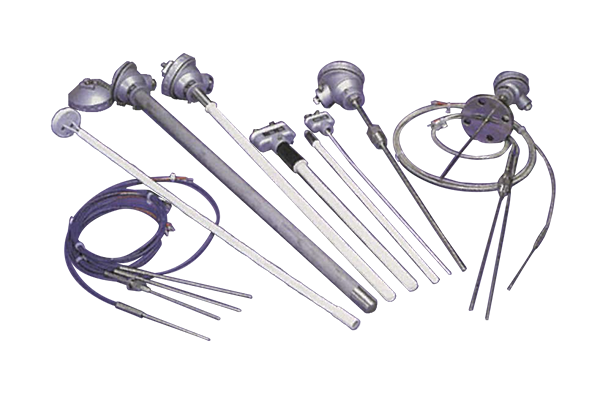

Temperature Sensor
Temperature Sensor
Thermocouples and resistance temperature sensor used for industrial are required to meet various conditions such as accuracy, life, and price. Materials required for measurement from -200 to +2300°C are available. Various shapes can be designed, so please consult us.
Specification
| Thermocouple | JIS B, S, R, K, N, E, J, T, WRe |
|---|---|
| Resistance Thermometer | Pt100 |
| Protection tube | Metal (SUS,P4), Alumina,Mullite, etc. |

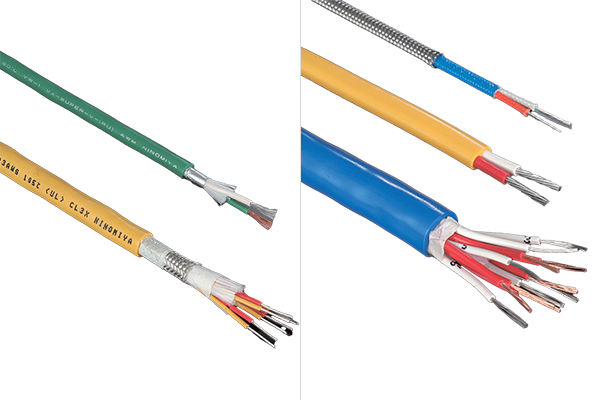

Thermocouple Extension wire and Duplex insulated Thermocouple Wire
Compensating lead wire connects the electromotive force of a thermocouple to a measuring instrument with high accuracy, and are available in a variety of colors and classes, including JIS class 1 and 2. Various types of sheathed thermocouples are also available.
Specification
| Compensating Conductor | JIS B, S, R, K, N, E, J, T, WRe |
|---|---|
| Coated Thermocouple | JIS K, N, E, J, T |
| Coating material | Vinyl, Glass, Fluoropolymers, etc. |

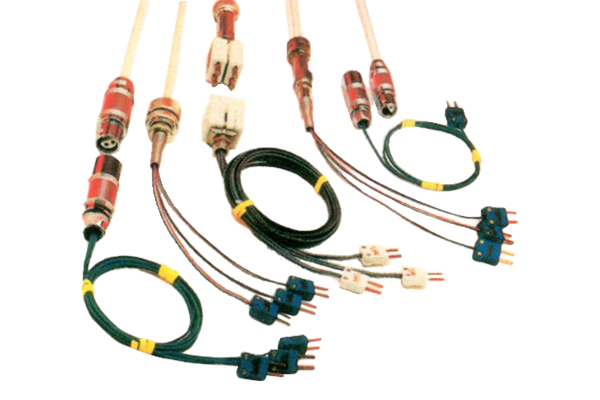

Various Thermocouple for Semiconductor Manufacturing
Various thermocouples for semiconductor manufacturing. We can design various types for profiles and spikes. Please contact us for quartz protection tubes, alumina protection tubes, ceramic coated wires, wire diameters, etc. a wide variety of products are also available.

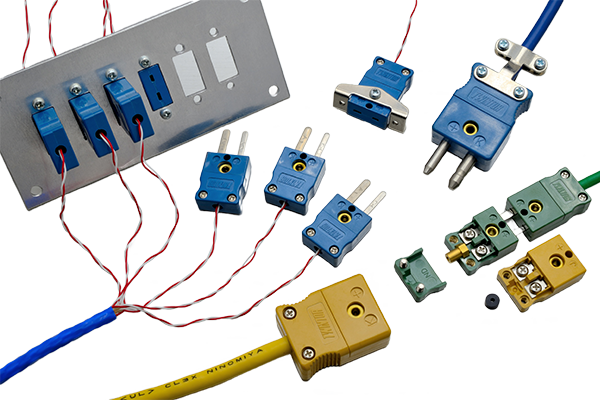

Ninomiya Electric Wire Industrial Product (TWINTOR)
This connector is used for the connection of thermocouples. The same material as that of the thermocouple is used for more accurate measurement. The color is consistent with that of the compensating conductor, making it easy to combine them.
Specification
| Kind | K, J, T, E, R |
|---|---|
| Housing | PPS (Heat Resistance Temperature -50～+260℃) |
| Type | Standard type, Miniature type |

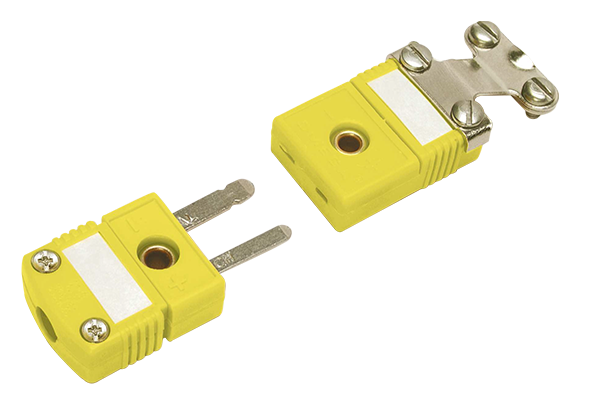

Omega Engineering Product
This connector is used for the connection of thermocouples. The same material as that of the thermocouple is used for more accurate measurement. Conformable to with ASTM/ANSI and JIS colors. We also offer products other than connectors.
Specification
| Kind | K, J, T, E, R/S, N, C, U |
|---|---|
| Type | Standard type (OSTW), Miniature type (SMPW) |
Download Catalogs
